SytelineMaster

Here is a basic way to call a SQL Store Procedure (SP) within a script, either Form Script or Inline Script.

The sample we use below is calling a SP: GetCustType and return the CustType value to a form variable.

Dim nRetVal As InvokeResponseData
Dim nRequest As New InvokeRequestData()

nRequest.IDOName = “SP!”
nRequest.MethodName = “GetCustType”

nRequest.Parameters.Add(ThisForm.PrimaryIDOCollection.GetCurrentObjectProperty(“CustNum”))
nRequest.Parameters.Add(“”)

nRetVal = IDOClient.Invoke(nRequest)

ThisForm.Variables(“vCustType”).Value = nRetVal.Parameters(1).ToString

And here is the SP:

PROCEDURE [dbo].[navGetCustType]
(@CustNum [CustNumType],
@CustType [CustTypeType] output)

as

select @CustType = cust_type
from customer
where cust_num = @CustNum and cust_seq = 0

Here is a multiple parameters  sample:

Sub nGetUnitDetails()
Dim nRetVal As InvokeResponseData
Dim nRequest As New InvokeRequestData()

nRequest.IDOName = “SP!”
nRequest.MethodName = “nGetUnitDetails”
nRequest.Parameters.Add(ThisForm.Components(“editUnit”).Text)
nRequest.Parameters.Add(CDate(ThisForm.PrimaryIDOCollection.GetCurrentObjectProperty(“RmahdrRmaDate”)))
nRequest.Parameters.Add(“”)
nRequest.Parameters.Add(“”)
nRequest.Parameters.Add(“”)
nRequest.Parameters.Add(“”)
nRequest.Parameters.Add(“”)
nRequest.Parameters.Add(“”)

nRetVal = IDOClient.Invoke(nRequest)

ThisForm.PrimaryIDOCollection.SetCurrentObjectPropertyPlusModifyRefresh(“Warranty”, nRetVal.Parameters(2).ToString)
ThisForm.PrimaryIDOCollection.SetCurrentObjectPropertyPlusModifyRefresh(“Item”, nRetVal.Parameters(3).ToString)
ThisForm.GenerateEvent(“ItemDataChange”)
ThisForm.PrimaryIDOCollection.SetCurrentObjectPropertyPlusModifyRefresh(“CoNum”, nRetVal.Parameters(4).ToString)
ThisForm.GenerateEvent(“OrderNumLoseFocus”)
ThisForm.PrimaryIDOCollection.SetCurrentObjectPropertyPlusModifyRefresh(“CoLine”, nRetVal.Parameters(5).ToString)
ThisForm.GenerateEvent(“DisplayRMAWarningMsgSp”)
ThisForm.PrimaryIDOCollection.SetCurrentObjectPropertyPlusModifyRefresh(“CoRelease”, nRetVal.Parameters(6).ToString)
ThisForm.GenerateEvent(“CoLineChanged”)
‘New for Parag
‘ThisForm.PrimaryIDOCollection.SetCurrentObjectPropertyPlusModifyRefresh(“UnitCreditConv”, nRetVal.Parameters(7).ToString)
‘ThisForm.GenerateEvent(“RecalcTotals”)

If Not nRetVal.Parameters(3).ToString = “” Then
ThisForm.PrimaryIDOCollection.SetCurrentObjectPropertyPlusModifyRefresh(“QtyToReturnConv”, “1”)
End If

End Sub

When deploying an UET customization in Syteline 7 & 8, there is SP can be used to script out the UET. Just do

exec ExportUETClassSP ‘classname’

Some server don’t this SP installed.  I just keep a copy here for in case

set ANSI_NULLS ON
set QUOTED_IDENTIFIER OFF
GO

ALTER PROCEDURE [dbo].[ExportUETClassSP] (

@PClassName Infobar

)

AS

DECLARE

@ClassName ClassNameType

, @ClassLabel LabelType

, @ClassDesc DescriptionType

, @SysHasFields ListYesNoType

, @SysHasTables ListYesNoType

, @SysApply UetSysApplyType

, @SysDelete ListYesNoType

, @FldName FldNameType

, @FldDataType UetDataTypeType

, @FldInitial UetDefaultType

, @FldDecimals UetScaleType

, @FldDesc ToolTipType

, @FldUDT sysname

, @FldPrec tinyint

, @IndexName IndexNameType

, @IndexDesc DescriptionType

, @IndexUnique ListYesNoType

, @IndexWord ListYesNoType

, @IndexSeq UetIndexSeqType

, @IndexAsc ListYesNoType

, @TableName TableNameType

, @TableRule QueryExpressionType

, @ExtendAllRecs ListYesNoType

, @AllowRecordAssoc ListYesNoType

, @Active ListYesNoType

, @SQLCmd InfobarType

, @SQLCmdWait InfobarType

, @Severity INT

, @Quote NCHAR(1)

, @RecordDate CurrentDateType

, @RowPointer RowPointerType

, @CommittedRowPointer RowPointerType

, @CreatedBy UsernameType

, @UpdatedBy UsernameType

, @CreateDate CurrentDateType

, @InWorkflow FlagNyType

SET @Severity = 0

SET @Quote = ””

DECLARE UserClassCrs CURSOR LOCAL STATIC

FOR SELECT

uc.class_name

, uc.class_label

, uc.class_desc

, uc.sys_has_fields

, uc.sys_has_tables

, uc.sys_apply

, uc.sys_delete

FROM user_class uc

WHERE class_name = @PClassName

OPEN UserClassCrs

WHILE @Severity = 0

BEGIN — cursor loop

FETCH UserClassCrs INTO

@ClassName

, @ClassLabel

, @ClassDesc

, @SysHasFields

, @SysHasTables

, @SysApply

, @SysDelete

IF @@FETCH_STATUS = -1

BREAK

SET @SQLCmd = ‘INSERT INTO user_class ( class_name, class_label,

class_desc, sys_has_fields, ‘

SET @SQLCmd = @SQLCmd + ‘sys_has_tables, sys_apply, sys_delete

) VALUES ( ‘

SET @SQLCmd = @SQLCmd + dbo.Quote(@ClassName) + ‘, ‘ +

dbo.Quote(@ClassLabel)

SET @SQLCmd = @SQLCmd + ‘, ‘ + dbo.Quote(@ClassDesc) + ‘, ‘ +

STR(ISNULL(@SysHasFields, 0))

SET @SQLCmd = @SQLCmd + ‘, ‘ + STR(ISNULL(@SysHasTables, 0)) +

‘, ‘ + dbo.Quote(@SysApply)

SET @SQLCmd = @SQLCmd + ‘, ‘ + STR(ISNULL(@SysDelete, 0)) + ‘ )’

print @SQLCmd

DECLARE UserClassFldCrs CURSOR LOCAL STATIC

FOR SELECT

ucf.class_name

, ucf.fld_name

, ucf.sys_apply

, ucf.sys_delete

FROM user_class_fld ucf

WHERE class_name = @PClassName

OPEN UserClassFldCrs

WHILE @Severity = 0

BEGIN — cursor loop

FETCH UserClassFldCrs INTO

@ClassName

, @FldName

, @SysApply

, @SysDelete

IF @@FETCH_STATUS = -1

BREAK

SET @SQLCmd = ‘INSERT INTO user_class_fld ( class_name,

fld_name, sys_apply, sys_delete ) VALUES ( ‘

SET @SQLCmd = @SQLCmd + dbo.Quote(@ClassName) + ‘, ‘ +

dbo.Quote(@FldName) + ‘, ‘ + dbo.Quote(@SysApply) + ‘, ‘ +

STR(ISNULL(@SysDelete, 0)) + ‘ )’

SET @SQLCmdWait = @SQLCmd

SELECT @FldName = fld_name

, @FldDataType = fld_data_type

, @FldInitial = fld_initial

, @FldDecimals = fld_decimals

, @FldDesc = fld_desc

, @SysApply = sys_apply

, @SysDelete = sys_delete

, @FldUDT = fld_UDT

, @FldPrec = fld_prec

FROM user_fld uf

WHERE uf.fld_name = @FldName

SET @SQLCmd = ‘INSERT INTO user_fld ( fld_name, fld_data_type,

fld_initial, fld_decimals, fld_desc, sys_apply, sys_delete,

fld_UDT, fld_prec ) VALUES ( ‘

SET @SQLCmd = @SQLCmd + dbo.Quote(@FldName) + ‘, ‘ +

dbo.Quote(@FldDataType) + ‘, ‘ + dbo.Quote(@FldInitial)

SET @SQLCmd = @SQLCmd + ‘, ‘ + STR(ISNULL(@FldDecimals, 0)) +

‘, ‘ + dbo.Quote(@FldDesc) + ‘, ‘ + dbo.Quote(@SysApply)

SET @SQLCmd = @SQLCmd + ‘, ‘ + STR(ISNULL(@SysDelete, 0)) + ‘,

‘ + dbo.Quote(@FldUDT) + ‘, ‘ + STR(ISNULL(@FldPrec, 0)) + ‘ )’

PRINT @SQLCmd

PRINT @SQLCmdWait

END — Cursor Loop UserClassFld

CLOSE UserClassFldCrs

DEALLOCATE UserClassFldCrs

DECLARE UserIndexCrs CURSOR LOCAL STATIC

FOR SELECT

ui.class_name

, ui.index_name

, ui.index_desc

, ui.index_unique

, ui.index_word

, ui.sys_apply

, ui.sys_delete

FROM user_index ui

WHERE class_name = @PClassName

OPEN UserIndexCrs

WHILE @Severity = 0

BEGIN — cursor loop

FETCH UserIndexCrs INTO

@ClassName

, @IndexName

, @IndexDesc

, @IndexUnique

, @IndexWord

, @SysApply

, @SysDelete

IF @@FETCH_STATUS = -1

BREAK

SET @SQLCmd = ‘INSERT INTO user_index ( class_name, index_name,

index_desc, index_unique, index_word, sys_apply, sys_delete )

VALUES ( ‘

SET @SQLCmd = @SQLCmd + dbo.Quote(@ClassName) + ‘, ‘ +

dbo.Quote(@IndexName) + ‘, ‘ + dbo.Quote(@IndexDesc)

SET @SQLCmd = @SQLCmd + ‘, ‘ + STR(ISNULL(@IndexUnique, 0)) +

‘, ‘ + STR(ISNULL(@IndexWord, 0))

SET @SQLCmd = @SQLCmd + ‘, ‘ + dbo.Quote(@SysApply) + ‘, ‘ +

STR(ISNULL(@SysDelete, 0)) + ‘ )’

PRINT @SQLCmd

DECLARE UserIndexFldCrs CURSOR LOCAL STATIC

FOR SELECT

uif.class_name

, uif.index_name

, uif.index_seq

, uif.fld_name

, uif.index_asc

FROM user_index_fld uif

WHERE class_name = @PClassName

AND index_name = @IndexName

OPEN UserIndexFldCrs

WHILE @Severity = 0

BEGIN — cursor loop

FETCH UserIndexFldCrs INTO

@ClassName

, @IndexName

, @IndexSeq

, @FldName

, @IndexAsc

IF @@FETCH_STATUS = -1

BREAK

SET @SQLCmd = ‘INSERT INTO user_index_fld ( class_name,

Scripting UET Definitions D-8

Modifying Infor ERP SyteLine

Copyright © 2009 Infor

index_name, index_seq, fld_name, index_asc ) VALUES ( ‘

SET @SQLCmd = @SQLCmd + dbo.Quote(@ClassName) + ‘, ‘ +

dbo.Quote(@IndexName) + ‘, ‘ + STR(ISNULL(@IndexSeq, 0))

SET @SQLCmd = @SQLCmd + ‘, ‘ + dbo.Quote(@FldName) + ‘, ‘ +

STR(ISNULL(@IndexAsc, 0)) + ‘ )’

PRINT @SQLCmd

END — Cursor Loop UserIndexFld

CLOSE UserIndexFldCrs

DEALLOCATE UserIndexFldCrs

END — Cursor Loop UserIndex

CLOSE UserIndexCrs

DEALLOCATE UserIndexCrs

DECLARE TableClassCrs CURSOR LOCAL STATIC

FOR SELECT

tc.table_name

, tc.class_name

, tc.table_rule

, tc.extend_all_recs

, tc.sys_apply

, tc.sys_delete

, tc.allow_record_assoc

, tc.active

FROM table_class tc

WHERE class_name = @PClassName

OPEN TableClassCrs

WHILE @Severity = 0

BEGIN — cursor loop

FETCH TableClassCrs INTO

@TableName

, @ClassName

, @TableRule

, @ExtendAllRecs

, @SysApply

, @SysDelete

, @AllowRecordAssoc

, @Active

IF @@FETCH_STATUS = -1

BREAK

SET @SQLCmd = ‘INSERT INTO table_class ( table_name, class_name,

table_rule, extend_all_recs, sys_apply, sys_delete,

allow_record_assoc, active ) VALUES ( ‘

SET @SQLCmd = @SQLCmd + dbo.Quote(@TableName) + ‘, ‘ +

dbo.Quote(@ClassName) + ‘, ‘ + dbo.Quote(@TableRule)

SET @SQLCmd = @SQLCmd + ‘, ‘ + STR(ISNULL(@ExtendAllRecs, 0)) +

‘, ‘ + dbo.Quote(@SysApply)

SET @SQLCmd = @SQLCmd + ‘, ‘ + STR(ISNULL(@SysDelete, 0)) + ‘,

‘ + STR(ISNULL(@AllowRecordAssoc, 0))

SET @SQLCmd = @SQLCmd + ‘, ‘ + STR(ISNULL(@Active, 0)) + ‘)’

PRINT @SQLCmd

END — Cursor Loop TableClass

CLOSE TableClassCrs

DEALLOCATE TableClassCrs

END — Cursor Loop UserClass

CLOSE UserClassCrs

DEALLOCATE UserClassCrs

RETURN @Severity

Problem:

Many business would not allow product shipped to a “PO Box” address.  So would like to block any “PO Box” address being entered into any ship to address.

Solution:

1)      Enter design mode of “Customer Ship Tos” Form.

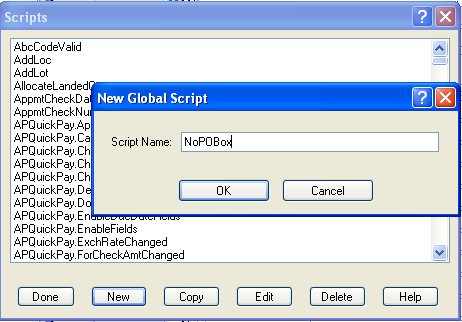

2)      We are going to first create a script.  Go to “Menu -> Edit -> Script”, a Script window should open.  Click “New”, enter Script Name called “NoPOBox”, then click OK.

Put in the following script:

Option Explicit On

Option Strict On

Imports System

Imports Microsoft.VisualBasic

Imports Mongoose.IDO.Protocol

Imports Mongoose.Scripting

Namespace SyteLine.GlobalScripts

Public class NoPOBox

Inherits GlobalScript

Sub Main()

Dim strValue As String

Dim logicYN as boolean

Dim logicYN1 as boolean

Dim logicYN2 as boolean

Dim logicYN3 as boolean

Dim logicYN4 as boolean

strValue = GetParameter(0).ToUpper()

logicYN = strValue like “*PO BOX*”

logicYN1 = strValue like “*P.O BOX*”

logicYN2 = strValue like “*P.O.BOX*”

logicYN3 = strValue like “*PO. BOX*”

logicYN4 = strValue like “*P.O. BOX*”

If logicYN or logicYN1 or logicYN2 or logicYN3 or logicYN4

ReturnValue = “1”

else

ReturnValue = “0”

end if

End Sub

End Class

End Namespace

Then “OK” to save the Script, and “Done” to close the Script window.

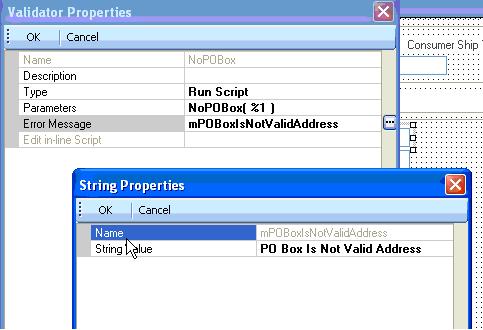

3)      Create a Validator.

While we are still in the design mode of “Ship Tos” Form, from menu, go to “Edit -> Validator”.  A “Validator” window open, click “New”.  In the “Validator Properties” window, enter “NoPOBox” as name, “Run Script” as type.  Select “NoPOBox” as script name from the pull-down list, that is the script we just created in step 2).

Then, create Error Message: “PO Box Is Not Valid Address”.

Click OK all the way back, we now have created a validator called “NoPOBox”, and we can apply it to the fields that we want to validate.

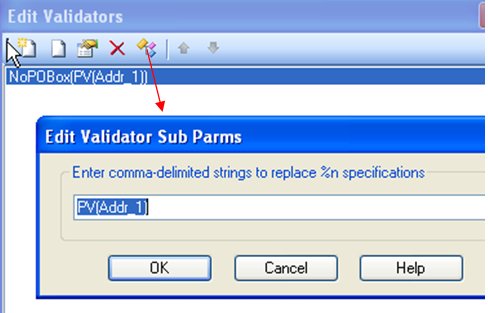

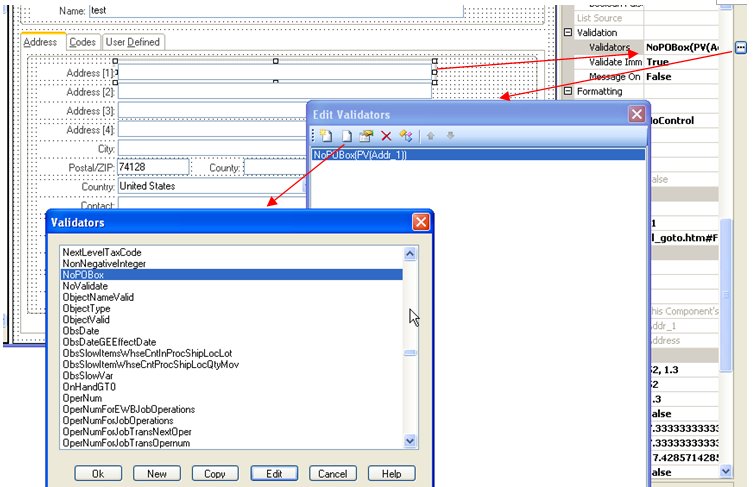

4)      Apply validator

Click to enter PV(Addr_1), that means property value of Addr_1, as parameters.

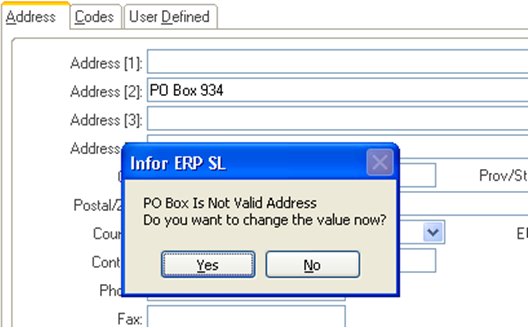

5) Now save the change and exit out of design mode, we should be able to see the validation is working:
